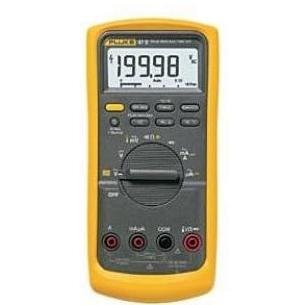

Fluke 87-5 Digital Multimeter |
| Brand: Fluke
Buy New: $299.99
New (19) Used (1) from $300.00
Rating:  10 reviews
Media: Tools & Hardware
Autographed: No
Memorabilia: No
Number Of Items: 1
Shipping Weight (lbs): 3.2
Dimensions (in): 9.9 x 6.3 x 3.6
Model: FLUKE 87-5
Availability: Usually ships in 1-2 business days
| |
| Features:
| • | Auto and manual ranging for maximum flexibility | | • | Analog bar graph for fast changing or unstable signals | | • | Measure up to 10 A, 20 A for up to 30 seconds | | • | Selectable filter for accurate voltage | | • | Input Alert provides audible warning against wrong use of input jacks |
|
| Accessories:
|
| Similar Items:
| |
| Editorial Reviews:
Product Description
Fluke 87-5 (87V) True RMS Digital MultimeterNew features for maximum productivity! Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment. Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument. Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks. Large digit display with bright, two-level backlight makes the 80- Series V significantly easier to read than older models. Features: True-rms ac voltage and current for accurate measurements on non linear signals. Selectable filter for accurate voltage and frequency measurements on motor drives. 0.05 % dc accuracy. 6000 counts, 3-3/4 digits. 4-1/2 digit mode for precise measurements (20,000 counts). Measure up to 1000 V ac and dc. Measure up to 10 A, 20 A for up to 30 seconds. Built in thermometer lets you carry one less tool (TC probe included). Frequency to 200 kHz and % duty cycle. Resistance, continuity and diode test. 10,000 µF capacitance range for components and motor caps. Min/Max-Average recording with Min/Max Alert to capture variations automatically. Peak capture to record transients as fast as 250 µs. Relative mode to remove test lead interference from low ohms measurements. Auto and manual ranging for maximum flexibility. Touch Hold to capture stable readings avoiding noisy signals. Large display digits and two-level bright white backlight for increased visibility. Analog bargraph for fast changing or unstable signals. Input Alert provides audible warning against wrong use of input jacks. Improved selectable sleep mode for long battery life. Access door for fast battery changes without breaking the calibration seal. "Classic" design with new removable holster with built in test lead and probe storage. Lifetime warranty.
Amazon.com Product Description
The Fluke 87-5 Digital Multimeter is a versatile True-RMS meter that's perfect for professional or around-the-house use. This meter offers auto and manual ranging for maximum flexibility, and it also offers an annual bar graph for quick-changing or unstable signals. Classically designed, the Fluke 87-5 has a removable holster with built-in probe and test-lead storage. For added convenience, it arrives ready to go with TL75 test leads and a nine-volt battery. |
The Fluke 87-5
Digital Multimeter
At a Glance:- Auto and manual ranging
- Removable holster with built-in probe and test-lead storage
- Built-in thermometer
- CAT IV 600-volt safety rated
- Includes TL75 test leads, alligator clips, and 9-volt battery
- Lifetime warranty
|
|  |
|
Fits in the palm of your hand.
|
Safe, Convenient Functions Enable Productivity
Designed for maximum productivity, the Fluke 87-5 has more problem solving power, safety, convenience, and impact protection than the previous 80 Series models. This multimeter offers improved measurement functions, accuracy, and resolution, as well as trouble-shooting features to solve problems with motor drives, in-plant automation, power distribution, and electro-mechanical equipment.Auto and Manual Ranging for Versatility
This unique multimeter provides both auto and manual ranging for optimum flexibility. And it's chock-full of helpful functions for accurate voltage and frequency measurements, even on adjustable-speed motor drives and other noisy equipment. The Fluke 87-5 also boasts a built-in thermometer that conveniently allows you to take temperature readings without having to use a separate instrument--no more carrying a thermometer to take readings inside a refrigerator or air conditioning unit. When used with ToolPak, a convenient magnetic hanger (sold separately), the Fluke 87-5 can be set up and viewed hands free. Selectable Filter and True-RMS AC Voltage for Dependable Accuracy
Incredibly responsive and reliable, the Fluke 87-5 is accurate to 0.05% DC. Also, True-RMS AC voltage and current provide accurate measurements on non-linear signals. Additionally, a selectable filter ensures accurate voltage, while an input alert provides an audible warning against incorrect use of the input jacks. The Fluke 87-5 measures up to 0 A, up to 20 A for 30 seconds, and 1,000-volt AC and DC. Also, it features an analog bar graph that allows for measurement of quick-changing or unstable signals. What's more, this meter measures frequency to 200 kHz, as well as resistance, continuity, and diode test. The Fluke records Min/Max/Average and has a Min/Max alert that automatically captures variations. The Relative mode removes test lead interference from low-ohms measurements. Easy-Read Display and Safe, Durable Design
The Fluke 87-5 comes equipped with a large, backlit display that shows easy-read digits. An improved selectable sleep mode helps increase the life of the battery, while an access door makes for fast battery changes without breaking the calibration seal. The Fluke 87-5 is also safe--it's independently tested to comply with the second edition of ANSI/ISA S82.01 and EN61010-1. Also, CAT IV 600V/CAT III 1000V rated, this handy meter can withstand impulses in excess of 8,000 volts and can reduce risks related to surges and spikes. Additionally, its tightly sealed design helps protect against damage, even when the unit is dropped. The Fluke 87-5 is backed by a lifetime warranty. What's in the Box
Fluke 87-5; TL75 test leads; AC72 alligator clips; holster; nine-volt battery (installed); Getting Started manual; CD with detailed manual; and 80BK temperature probe.
|
| Customer Reviews:
Showing reviews 1-5 of 10
Absolutely Top-Quality June 12, 2009
New England Yankee (Northern New England)
22 out of 23 found this review helpful
First, Fluke itself: Fluke makes best-quality meters. In fact, they are overwhelmingly regarded as the best meters available. That's not to say there aren't other very good brands (e.g., Agilent, Hioki), or that 2nd tier brands (e.g., Extech, Meterman) don't have their place - they do. But Fluke meters in general offer the combination of best specifications, best build, and best protection (for you as well as the meter). The thing is, you will pay top dollar.
The 87 is a very tough meter in very widespread use in the field. The 80 series meters, like the 70 series that preceeded them, have a reputation for holding their accuracy and lasting for decades. They are well-fused and well-shielded, tightly-sealed, and stories of Fluke meters surviving falls, high voltages and currents, weather, and a myriad of other challenges are legion.
Look carefully at specs and responsiveness. The 87 is exceptionally responsive. Continuity detection, for example, is extraordinarily fast, to the point where it's hard NOT to trigger the beep when testing by touching the probes, no matter how quickly and briefly you try to touch them together. Compare that to other meters with lesser response characteristics and it will dawn on you how easy it is to miss an intermittent. Basic accuracy is very good in the 80 series and also limited to +1 or +2 digits in most ranges. Compare that to many others where it's often +4, or even more, plus the 87 can be put into 20,000 count mode, and relative mode can be used to get more accuracy as well where you need it.
Finally, the 80 series carries a lifetime warranty. Considering Amazon's aggressive pricing on these meters, the premium over a lesser meter like, say, the Fluke 117 (which carries only a 3-year warranty) is low enough that it makes sense to upgrade to the better meter.
FYI - the Pelican 1200 case is an excellent fit for this meter, as long as you don't need to carry a lot of accessories. Pelican 1200 Case w/Foam (Black) Probably the most rugged case you can buy.
don't waste your money on Cheap meters! June 27, 2007
D. Rice (Indiana)
17 out of 17 found this review helpful
I have been in the RV repair industry for a long time and one thing is for sure, I cannot do my job without a top quality meter. I have in the past bought Snap-On, Mac, Matco,ect, but have never been as pleased with a meter as I have with this one. Beyond the normal functions of a meter, I love this one for its temp probe, no more are the days of carrying a therometer to take readings inside fride, a/c/ unit, all I do is plug it into the meter put the probe inside and shut the door within 30 seconds I have a very accurate reading. But probably the most important thing about this merter is the "true RMS" readings I get, this is very important when working with power converters and inverters..This meter is very well protected also with fuses (fuses are pricey though) have not blown one yet but I would recommend purchasing a set to keep on hand.
Best Multimeter I've owned January 13, 2008
Keith (Manila, Philippines)
9 out of 9 found this review helpful
I've used a couple of cheap multimeters in the past. Once I ordered my new tube amp, the manufacturer recommended not to use a cheap multimeter, and get a Fluke 87-5 as this would give accurate readings.
Well, after spending that much on the tube amp, I had to get the Fluke. Upon receiving it, build quality was excellent. Manual was also pretty good. Although, the manual presupposes that you know how to work a multimeter unit already. I had to slowly figure it out as I am no engineer.
Bottom line, this is a great product! I only wish it were readily available in the Philippines. The price of this here in Manila is double srp in the US.
FLUKE 87-5 August 24, 2010
ERICH IN NEW JERSEY
This multimeter is everything I expected. No disappointments. The meter is used in automotive and general use. It replaced a Fluke 8060A multimeter which was over 20 years old and finally failed. The 8060 required range selection and did not have an auto shut off.
Greatest features are Autorange and automatic shut off. It was difficult to find where in the documentation battery replacement instructions were located and these instructions did not indicate that the protective casing needs to be removed to access the battery door. It was also not clear that the unit was supplied with an installed battery. These documentation issues however do not significantly detract from the quality of the product.
Excellent quality as always. August 27, 2010
Bill Meier
Fluke is known for high quality multimeters. This model is also. It shows a few improvements over our previous Fluke model such as the back light, thermocouple probe for measuring temperature, and the normal probes have an alligator clip attachment.
Showing reviews 1-5 of 10
|
|
|
